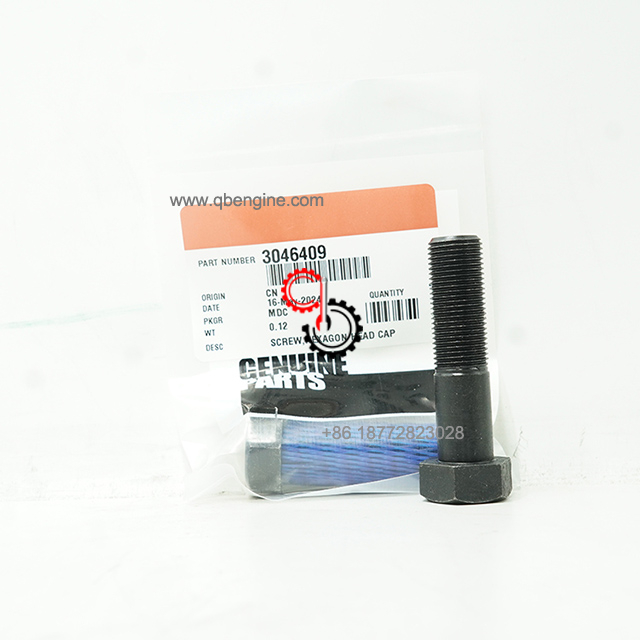

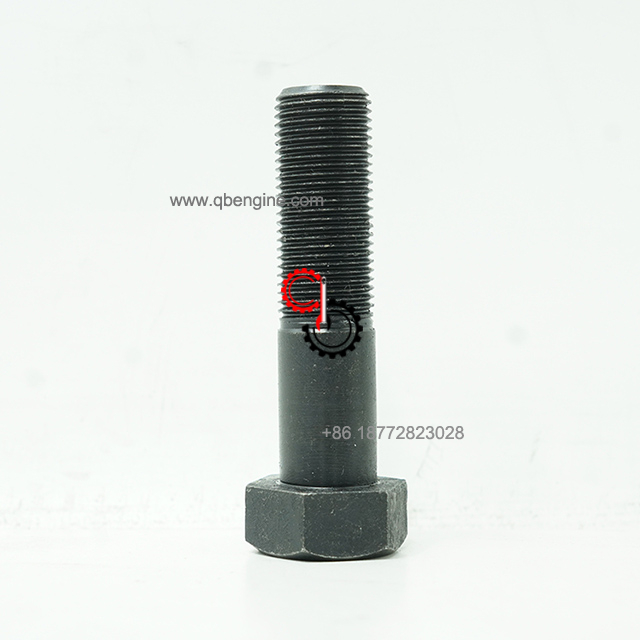

Original Cummins QSK 3046409 Hexagon Head Cap Screw

  • QSK

  • Cummins

  • 3046409

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Original Cummins QSK 3046409 Hexagon Head Cap Screw

Electronic Parts Catalogue - Option Detail
Cummins Engines Cummins Engine Parts G50, K50, K50-DPM, QSK50 CM2150 K107, QSK50 CM2150 MCRS, QSK50 CM2350 K108, QSK50 CM850 MCRS, QSK50 DF CM850/CM2150 MCRS

3046409

Cart Ref No Part Number Part Description Required Remarks

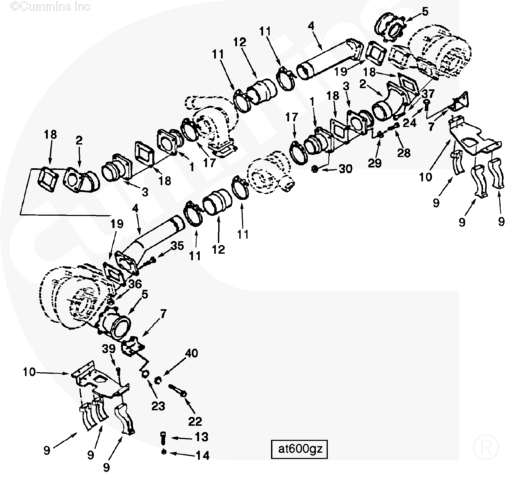

PP6084 Turbocharger Connections

1 3051718 Exhaust Outlet Connection 2

2 3051716 Exhaust Outlet Connection 2

3 3055119 Exhaust Outlet Connection 2

4 3055118 Air Intake Connection 2

5 3029639 Air Intake Connection 2

7 3055121 Turbocharger Bracket 2

9 3051793 Turbocharger Support 6

10 3055122 Turbocharger Bracket 2

11 3179846 T-Bolt Clamp 4 5 3/4 Inch.
12 3067428 Plain Hose 2

13 206028 Socket Head Cap Screw 6 3/4 - 10 X 2 1/4 Inch.
14 205059 Plain Washer 6 3/4 Inch.
17 3029631 V Band Clamp 2

18 3055695 Exhaust Outlet Connection Gasket 4

19 3051779 Connection Gasket 2

22 108707 Hexagon Head Cap Screw 8 3/8 - 16 x 1 1/2 in.
23 108330 Plain Washer 8 3/8 in.
24 S 113 Hexagon Head Cap Screw 4 1/2 - 13 x 1 1/2 in.
28 3046409 Hexagon Head Cap Screw 8 5/8 - 18 X 2 1/4 Inch.
29 S 603 Lock Washer 8 5/8 in.
30 3046410 Regular Hexagon Nut 8 5/8 - 18 UNF.
35 S 137 Hexagon Head Cap Screw 8 3/8 - 16 x 2 in.
36 S 223 Heavy Hexagon Nut 8 3/8 - 16 UNC
37 3055132 Hexagon Head Cap Screw 8 5/8 - 18 X 2 1/2 Inch.
39 S 145 Hexagon Head Cap Screw 8 1/2 - 13 X 1 1/4 in.
40 S 604 Lock Washer 8 3/8 in.


SHIPMENT CHARACTERISTICS
Length * Width * Height 6.731cm*3.175cm*3.175cm
Weight 0.126kg


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
