Cummins / Products / 3035844 AR11501 Genuine Cummins K38 Thermostat Housing K50

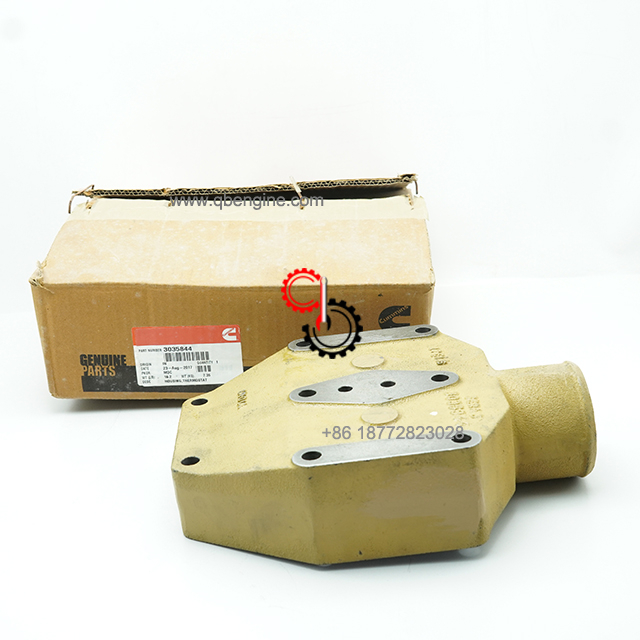

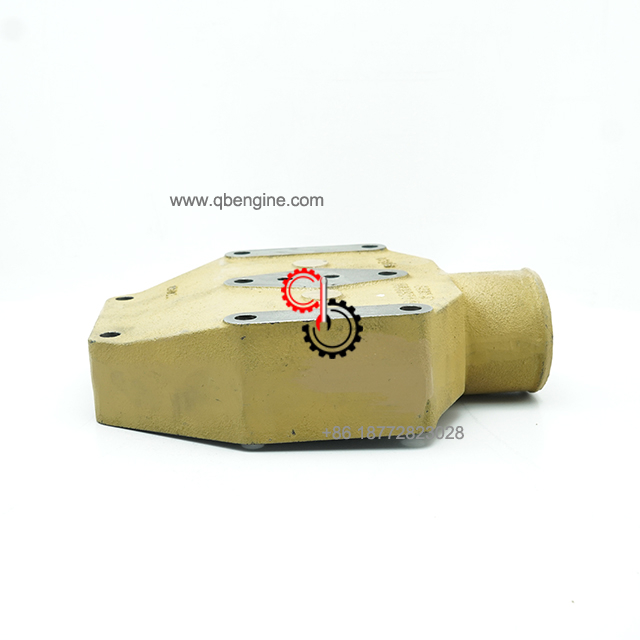

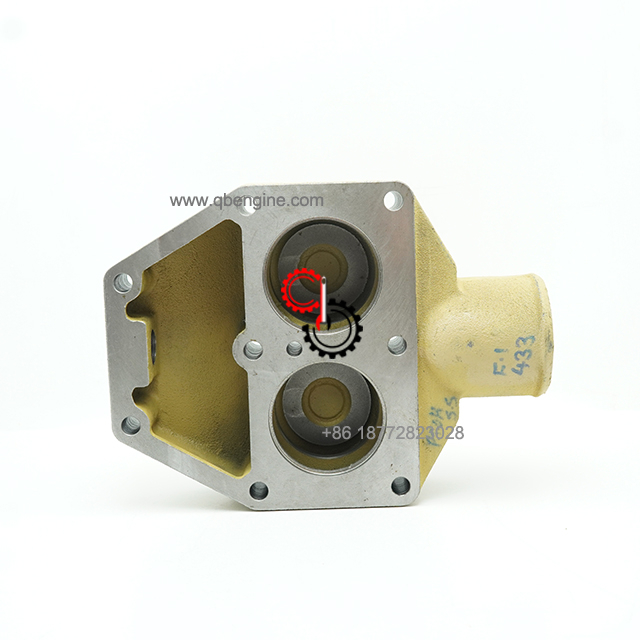

3035844 AR11501 Genuine Cummins K38 Thermostat Housing K50
3035844 AR11501 Genuine Cummins K38 Thermostat Housing K50 3035844 AR11501 Genuine Cummins K38 Thermostat Housing K50
3035844 AR11501 Genuine Cummins K38 Thermostat Housing K50 3035844 AR11501 Genuine Cummins K38 Thermostat Housing K50
3035844 AR11501 Genuine Cummins K38 Thermostat Housing K50 3035844 AR11501 Genuine Cummins K38 Thermostat Housing K50

loading

3035844 AR11501 Genuine Cummins K38 Thermostat Housing K50

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
3035844 AR11501 Genuine Cummins K38 Thermostat Housing K50

  • 3035844 AR11501

  • Cummins

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Supersession Part Number:
3035844
AR11501
weight(kg):
7.08
size(cm):
32cm*24cm*8cm
Availability:
Quantity:
Inquire Add to Basket

PDF Export

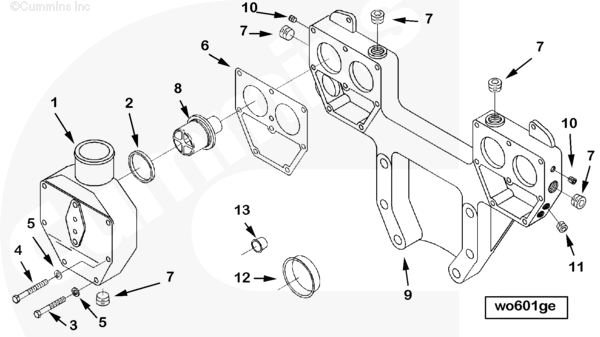

Cummins Electronic Parts Catalog - Option Detail
Engines Cummins Engine Parts GTA38, K38, KTA38GC CM558, QSK38 CM2150 K106, QSK38 CM2150 MCRS, QSK38 CM850 MCRS

3035844

Cart Ref No Part Number Part Description Required Remarks


WO6021-05 Water Connection
Thermostat support and...(More)
1 3035844 Thermostat Housing 2

2 3627961 Thermostat Seal 4

3 S 141 Hexagon Head Cap Screw 5 3/8 - 16 X 2 3/4 in.
4 S 163 Hexagon Head Cap Screw 8 3/8 - 16 X 3 1/4 in.
5 S 604 Lock Washer 12 3/8 in.
6 206443 Thermostat Housing Gasket 2

7 3628607 Pipe Plug 4 3/4-14.
8 3629205 Thermostat 4

9 3627808 Thermostat Housing Support 1

10 3628605 Pipe Plug 2 1/4 - 18.
11 3628606 Pipe Plug 9 1/2 - 14.
12 3175400 Protective Cover 2

13 3175550 Protective Cover 2


108722 Clip 1

Additional Parts are also available. Check with Qingbang Online Service.

Previous:
Next:
3035844 AR11501 3035844 Thermostat Housing thermostat housing K38 Thermostat Housing K50 AR11501 Cummins K38 Thermostat Housing Cummins 3035844 engine thermostat housing engine 3035844
