Cummins / Cummins Parts / Electronic Control Module (ECM), Sensor, Wiring Harness / 3035738 Fuel Shutoff Valve K19 QSK19 Original Cummins Engine Spare Parts
3035738 Fuel Shutoff Valve K19 QSK19 Original Cummins Engine Spare Parts
3035738 Fuel Shutoff Valve K19 QSK19 Original Cummins Engine Spare Parts 3035738 Fuel Shutoff Valve K19 QSK19 Original Cummins Engine Spare Parts
3035738 Fuel Shutoff Valve K19 QSK19 Original Cummins Engine Spare Parts 3035738 Fuel Shutoff Valve K19 QSK19 Original Cummins Engine Spare Parts
3035738 Fuel Shutoff Valve K19 QSK19 Original Cummins Engine Spare Parts 3035738 Fuel Shutoff Valve K19 QSK19 Original Cummins Engine Spare Parts

loading

3035738 Fuel Shutoff Valve K19 QSK19 Original Cummins Engine Spare Parts

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Original Cummins K19 QSK19 3035738 Shutoff Valve

  • K19 QSK19

  • Cummins

  • 3035738

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Original Cummins K19 QSK19 3035738 Shutoff Valve

Electronic Parts Catalogue - Option Detail
Cummins Engines Cummins Engine Parts K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

3035738

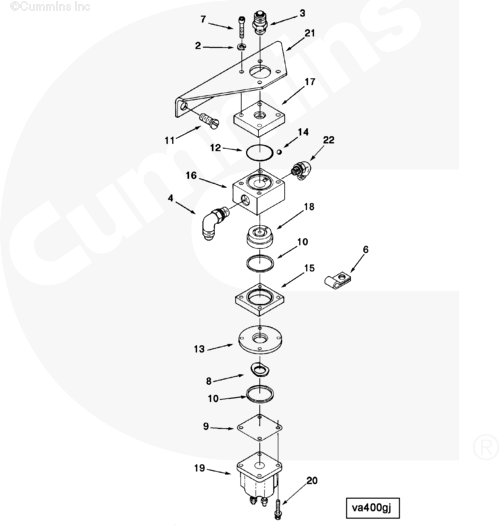

Cart Ref No Part Number Part Description Required Remarks


PP4718 Oil Control Valve
Oil Control Valve
2 S 607 Lock Washer 4 #10
3 118346 Male Union 1

4 118347 Male Union Elbow 1

6 180372 Clip 4

7 192861 Socket Head Cap Screw 4 #10 - 24 X 1"

3035738 Shut-Off Valve 1

8 129768 Valve Spring 1

9 129839 Shut-Off Valve Shield 1

10 129888 Rectangular Ring Seal 2

11 138764 Pan Head Cap Screw 2 #10 - 24 X 3/4"
12 145536 O-Ring Seal 1

13 196057 Valve Disc 1

14 3015521 Ball 1

15 3034451 Actuator Housing 1

16 3035739 Shut-Off Valve Body 1

17 3035740 Shut-Off Valve Cover 1

18 3041466 Actuator Disc 1

19 3054609 Solenoid 1
Serviced as 4024809
20 3065944 Captive Washer Cap Screw 4 #10 - 24 X 1"
21 3037658 Shut-Off Valve Bracket 1

22 3038743 Check Valve 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 7cm*7cm*11cm
Weight 0.68kg


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
