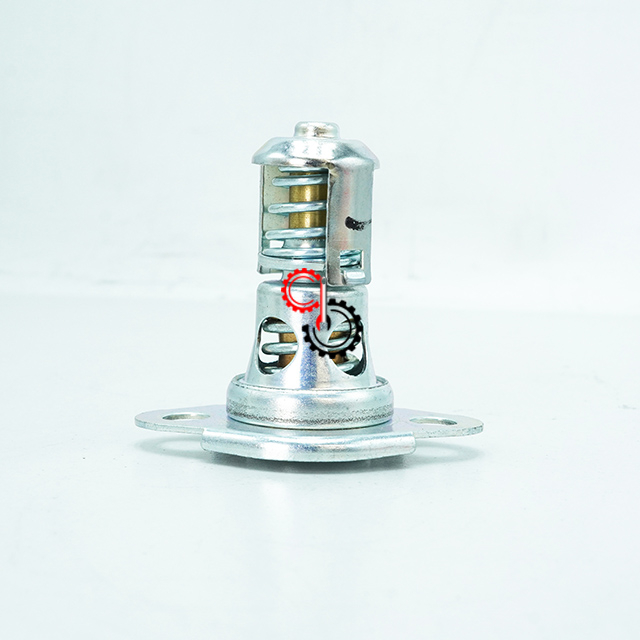

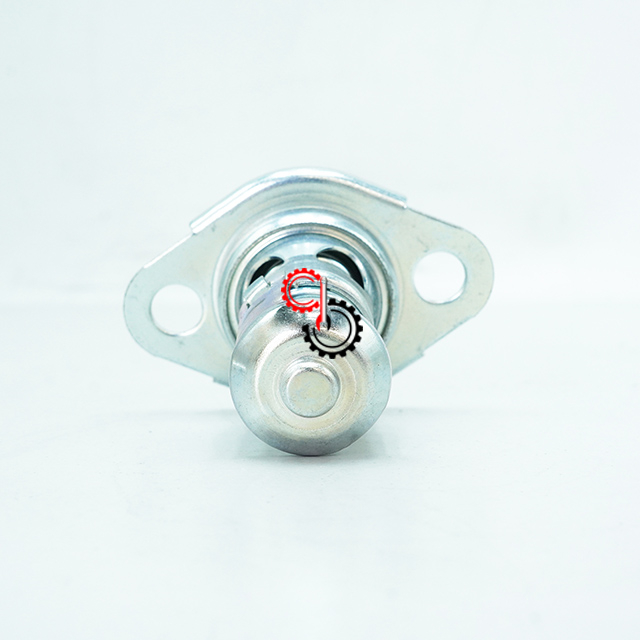

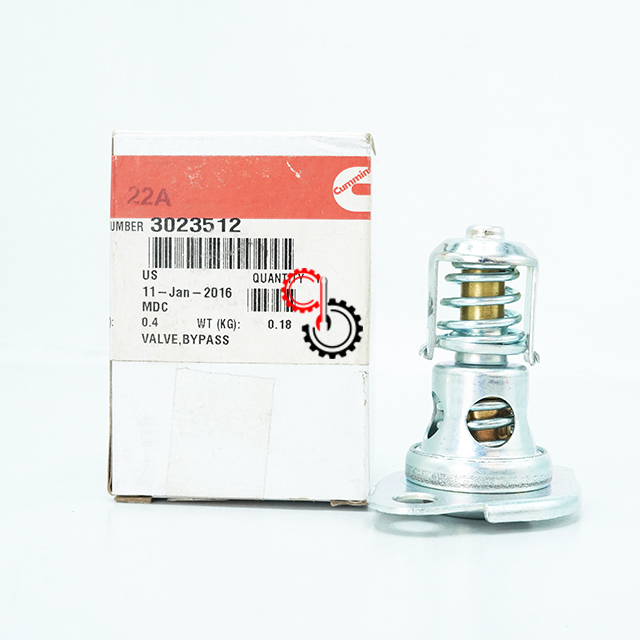

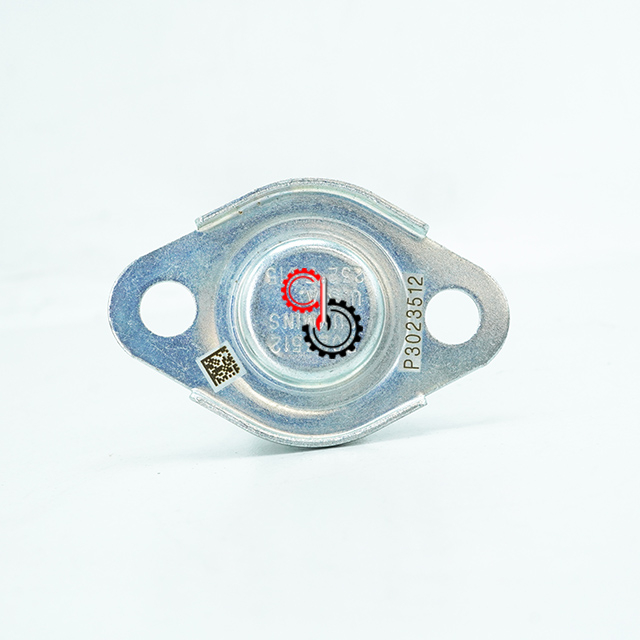

Cummins Bypass Valve 3023512

  • 3023512

  • Cummins

Supersession Part Number:
3023512
weigt(kg):
0.181
Size:
6cm*6cm*9cm
Availability:
Quantity:
Inquire Add to Basket

PDF Export

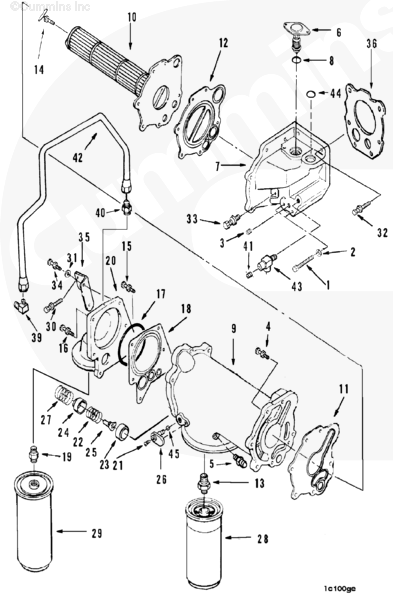

Electronic   Parts Catalog - Option details
motor NH/NT   855, NT495, NT743, NTA855 N106

3023512

Cart Ref No Part Number Part   Description

3045485 Oil   Cooler, Engine 1
1 S   117 Hexagon   Head Cap Screw 2
2 S   604 Lock   Washer 2
3 3013786 Pipe   Plug 1
4 3010596 Captive   Washer Cap Screw 6
5 3042619 Coupling   Nipple 1
6 3023512 Bypass   Valve 1
7 3027460 Oil   Cooler Support 1
8 3045979 O-Ring   Seal 1
9 3040680 Oil   Cooler Housing 1
10 3045483 Cooler   Core 1
11 3047465 Lubricating   Oil Cooler Housing Gasket 1
12 3047464 Oil   Cooler Core Gasket 1
13 3034578 Filter   Head Adapter 1
14 214345 Draincock 1
15 3040838 Captive   Washer Cap Screw 1
16 3044413 Captive   Washer Cap Screw 5
17 3018695 Rectangular   Ring Seal 1
18 3047466
1
19 3037219 Filter   Head Insert 1
20 3037241 Lubricating   Oil Filter Head 1
21 3031005 Pan   Head Cap Screw 1
22 3030803 Compression   Spring 1
23 3030804 Bypass   Valve Piston 1
24 3030805 Pressure   Sensing Piston 1
25 3030806 Bypass   Valve Plunger 1
26 3035028 Sensing   Unit Assembly 1
45 3030808 O-Ring   Seal 1
27 3039296 Compression   Spring 1
28 3313287 Lubricating   Oil Filter Element 1
29 3313289 Lubricating   Oil Filter Element 1
30 3044901 Captive   Washer Cap Screw 2
31 S   602 Plain   Washer 2
32 3010596 Captive   Washer Cap Screw 3
33 3010597 Captive   Washer Cap Screw 3
34 3012475 Captive   Washer Cap Screw 2
35 3018697 Oil   Cooler Brace 1
36 3008017 Oil   Cooler Support Gasket 1
44 212161 O-Ring   Seal 2
39 S   1040 A Male   Adapter Elbow 1
40 68645 Male   Adapter Elbow 1
41 3008466 Pipe   Plug 1
42 3049693 Lubricating   Oil Bypass Tube 1
43 3175687 Street   Pipe Tee 1
