Cummins / Cummins Parts / Air Compressor, Water Pump, Oil Pump, Vacuum Pump, EGR / 3021189 Original Cummins K19 Heat Exchanger Bracket Diesel Engine Parts
3021189 Original Cummins K19 Heat Exchanger Bracket Diesel Engine Parts
3021189 Original Cummins K19 Heat Exchanger Bracket Diesel Engine Parts 3021189 Original Cummins K19 Heat Exchanger Bracket Diesel Engine Parts
3021189 Original Cummins K19 Heat Exchanger Bracket Diesel Engine Parts 3021189 Original Cummins K19 Heat Exchanger Bracket Diesel Engine Parts
3021189 Original Cummins K19 Heat Exchanger Bracket Diesel Engine Parts 3021189 Original Cummins K19 Heat Exchanger Bracket Diesel Engine Parts

loading

3021189 Original Cummins K19 Heat Exchanger Bracket Diesel Engine Parts

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

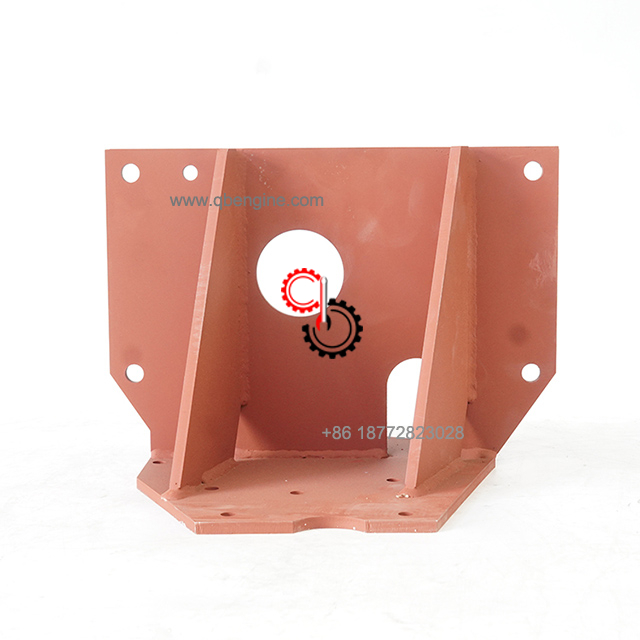

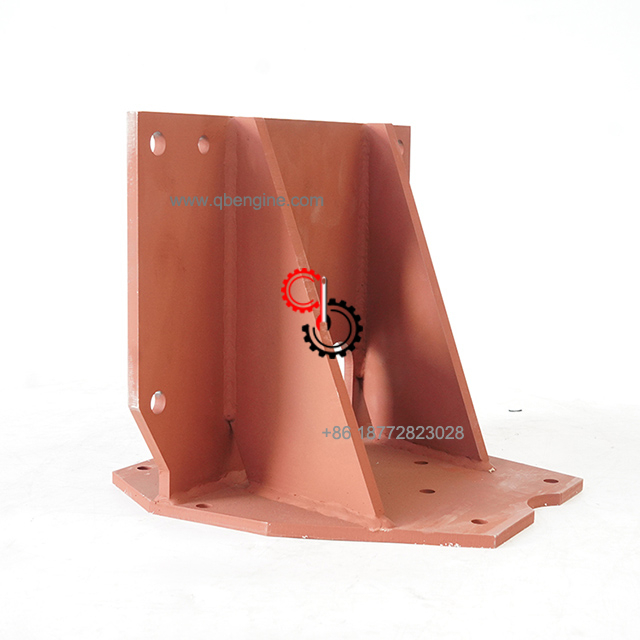

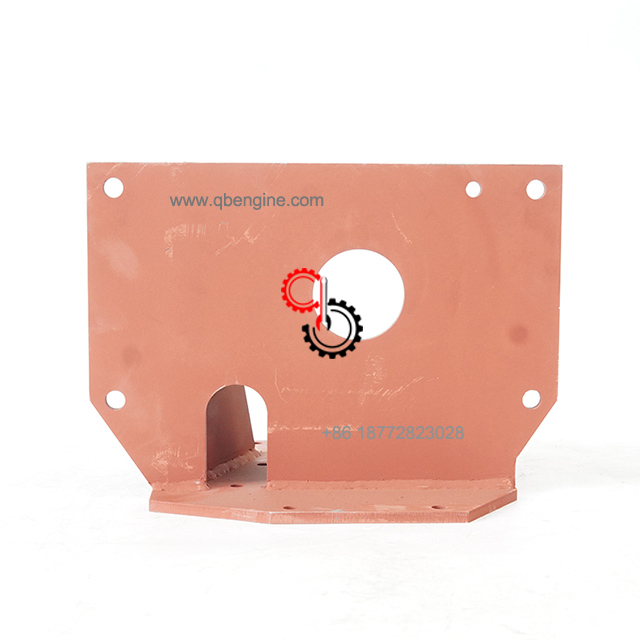

Original Cummins K19 3021189 Heat Exchanger Bracket

  • K19

  • Cummins

  • 3021189

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Original Cummins K19 3021189 Heat Exchanger Bracket In Stock

Electronic   Parts Catalog - Option Detail
Cummins   Engines Cummins Engine Parts   K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19   CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850   MCRS, QSK19G

3021189

Cart Ref No Part Number Part Description Required Remarks


HX4080 Heat Exchanger
Heat exchanger with 370...(More)
1 119665 Filler Cap 1

2 3008837 Sight Gauge 1

3 3050385 Heat Exchanger 1

4 3008861 Water Inlet Connection 2

5 3008866 Water Transfer Tube 1


3012471 Captive Washer Cap Screw 4 3/8 - 16 x 1 1/8 in.
6 S 172 B Hexagon Head Cap Screw 4 3/8 - 16 X 1 1/8 in.
7 S 604 Lock Washer 7 3/8 in.
8 3008832 Water Transfer Connection Gasket 1

9 43828 F Hose Clamp 6 2 9/16 - 3 1/2 in.
10 63223 Plain Hose 1

11 107063 Plain Hose 1

12 S 134 Hexagon Head Cap Screw 5 5/16 - 18 X 2 in.
13 S 221 Heavy Hexagon Nut 5 5/16 - 18 UNC
14 S 605 Lock Washer 5 5/16 in.
15 43828 A Hose Clamp 4 11 16 - 1 1/2 in.
16 3027706 Plain Hose 2

17 3034856 Noise Isolator 1

18 3034858 Mounting Spacer 1

20 S 609 Lock Washer 4 9/16 in.
21 S 923 E Draincock 2 1/4 NPTF
22 137972 Hexagon Head Cap Screw 4 9/16 - 12 X 1 1/4"
23 3021189 Heat Exchanger Bracket 1

24 3032148 Expansion Tank 1

30 AS 5011 SS Flexible Hose 1

31 AS 5028 SS Flexible Hose 1

32 S 109 Hexagon Head Cap Screw 1 3/8 - 16 x 7/8 in.
33 S 223 Heavy Hexagon Nut 1 3/8 - 16 UNC
34 S 906 B Reducing Pipe Bushing 1

35 68425 Clip 1

36 69901 Pipe Plug 2 1/8 NPT.
37 109557 Plain Washer 4 1/4"
38 116936 Male Adapter Elbow 2

39 144372 Male Adapter Elbow 2


SHIPMENT CHARACTERISTICS
Length * Width * Height 15cm*15cm*15cm
Weight 38kg


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
