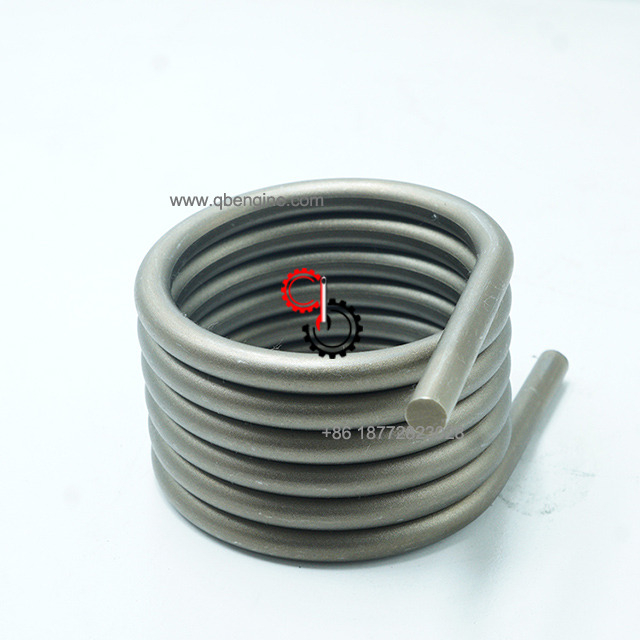

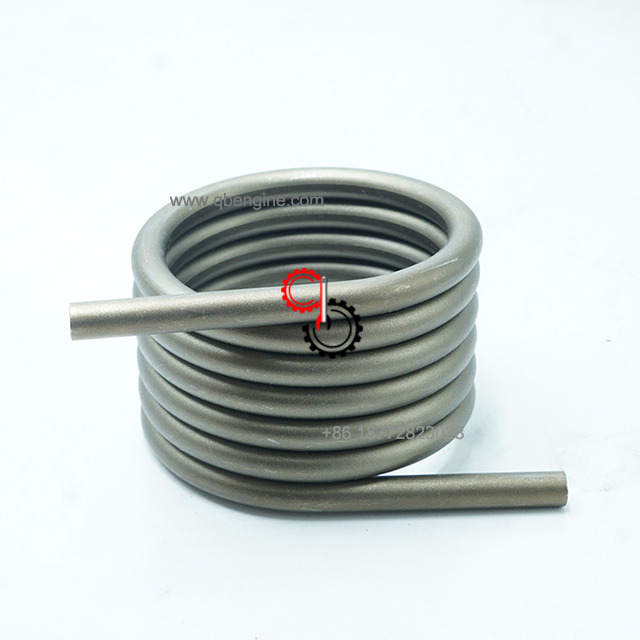

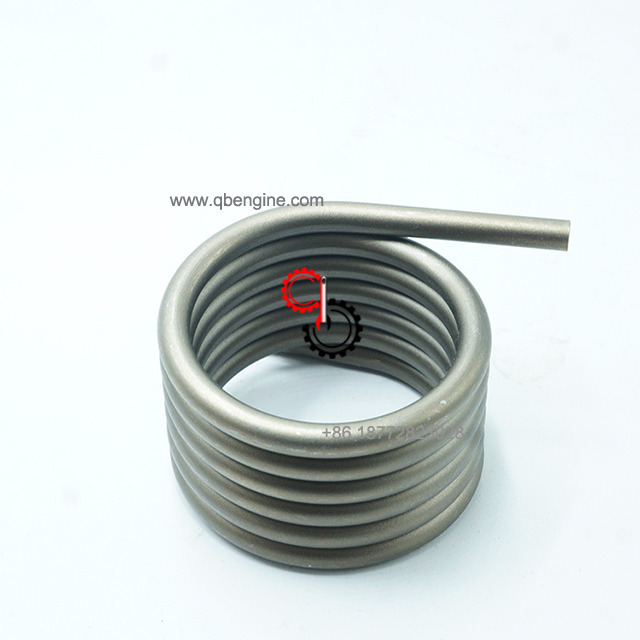

Original Cummins K38 K50 Torsion Spring 3019416

  • K38 K50

  • Cummins

  • 3019416

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Original Cummins K38 K50 Torsion Spring 3019416 In Stock

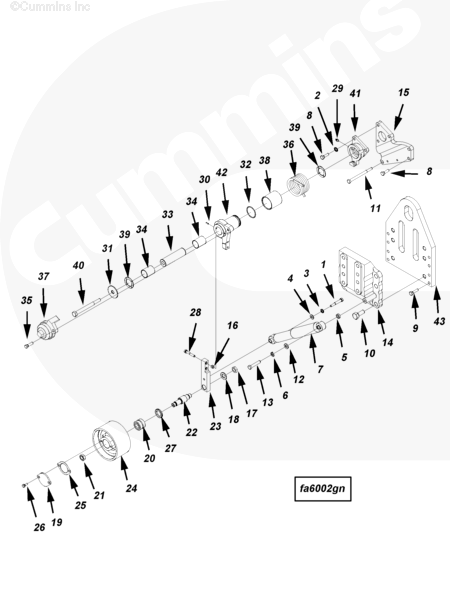

Electronic  Parts Catalog - Option Detail
Cummins  Engines Cummins Engine Parts  QST30 CM2350 T101, QST30 CM552, QST30 CM850

3019416

Cart Ref No Part Number Part Description Required Remarks


FA5075-08 Fan Drive
Fan drive...(More)
1 S 162 A Hexagon Head Cap Screw 1 7/16 - 14 X 2 3/4 in.
2 S 608 Lock Washer 3 1/2 in.
3 S 610 Lock Washer 1 7/16 in.
4 S 622 Plain Washer 1 3/8 in.
5 65434 Mounting Spacer 1

6 409282 Lock Washer 1 3/8 Inch.
7 3008018 Shock Absorber 1

8 3064111 Hexagon Head Cap Screw 5 M12 x 1.75 x 35.
9 3093753 Hexagon Head Cap Screw 8 M12 x 1.75 x 40
10 3093761 Hexagon Head Cap Screw 6 M20 x 2.50 x 45
11 3093774 Hexagon Head Cap Screw 1 M12 x 1.75 x 40.
12 3093778 Plain Washer 2

13 3093892 Hexagon Head Cap Screw 1 M12 x 1.75 x 65.
14 3093958 Fan Support 1

15 4067895 Idler Pulley Bracket 1


4068606 Idler Pulley Assembly 1

16 3002993 Ring Dowel 2


3009480 Idler Pulley 1

17 S 249 Regular Hexagon Jam Nut 1 3/4 - 16 UNF
18 S 640 Plain Washer 1 3/4 in.
19 207603 Idler Pulley Cover 1

20 3003354 Roller Bearing 1

21 3004057 Lock Nut 1 3/4 - 16 UNF.
22 3009481 Idler Shaft 1

23 3009482 Idler Pulley Bracket 1

24 3009483 Idler Pulley 1

25 3014449 Flange Gasket 1

26 3021470 Captive Washer Cap Screw 2 5/16 - 18 x 3/4 in.
27 3065830 Oil Seal 1

28 3012475 Captive Washer Cap Screw 2 3/8 - 16 X 2 1/4 in.

3068607 Idler Lever 1

29 S 2268 Grease Fitting 1

30 68171 Roll Pin 2

31 127454 Plain Washer 1 5/8 Inch.
32 145581 O-Ring Seal 1

33 3009475 Pivot Shaft 1

34 3009477 Sleeve 2

35 3012481 Captive Washer Cap Screw 2 7/16 - 14 x 1 1/2 in.
36 3019416 Torsion Spring 1

37 3023499 Idler Lever Cap 1

38 3177128 Wear Sleeve 1

39 3177129 Thrust Bearing 2

40 3628104 Hexagon Head Cap Screw 1

41 4068608 Pivot Shaft Support 1

42 4101094 Idler Lever 1

43 4975748 Engine Lifting Bracket 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 14cm*7cm*7cm
Weight 1.03kg


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
