Cummins / Products / 3010269 K38 K50 Driving Accessory Drive Motor Parts Engine Spare Cummins
3010269 K38 K50 Driving Accessory Drive Motor Parts Engine Spare Cummins
3010269 K38 K50 Driving Accessory Drive Motor Parts Engine Spare Cummins 3010269 K38 K50 Driving Accessory Drive Motor Parts Engine Spare Cummins
3010269 K38 K50 Driving Accessory Drive Motor Parts Engine Spare Cummins 3010269 K38 K50 Driving Accessory Drive Motor Parts Engine Spare Cummins
3010269 K38 K50 Driving Accessory Drive Motor Parts Engine Spare Cummins 3010269 K38 K50 Driving Accessory Drive Motor Parts Engine Spare Cummins
3010269 K38 K50 Driving Accessory Drive Motor Parts Engine Spare Cummins 3010269 K38 K50 Driving Accessory Drive Motor Parts Engine Spare Cummins
3010269 K38 K50 Driving Accessory Drive Motor Parts Engine Spare Cummins 3010269 K38 K50 Driving Accessory Drive Motor Parts Engine Spare Cummins

loading

3010269 K38 K50 Driving Accessory Drive Motor Parts Engine Spare Cummins

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
3010269 K38 K50 Driving Accessory Drive Motor Parts Engine Spare Cummins

  • 3010269

  • Cummins

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Supersession Part Number:
3010269
Size:
24cm*18cm*19cm
Weight:
9.19
Availability:
Quantity:
Inquire Add to Basket

PDF Export

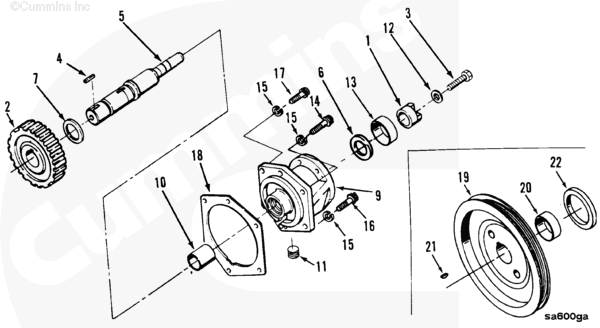

Electronic Parts Catalog - Option Detail
Engines GTA38, K38, KTA38GC CM558, QSK38  CM2150 K106, QSK38 CM2150 MCRS, QSK38 CM850 MCRS

3010269

Cart Ref No Part Number Part Description

3010269 Air   Compressor Support

3010269 Air   Compressor Support 1
1 3045137 Hexagon   Head Cap Screw 1
1 3000174 Spline   Coupling Hub 1
2 3000174 Spline   Coupling Hub 1
2 207253 Accessory   Drive Gear 1
3 207253 Accessory   Drive Gear 1
3 3045137 Hexagon   Head Cap Screw 1
4 S   316 Plain   Woodruff Key 1
4 S   316 Plain   Woodruff Key 2
6 3045229 Accessory   Drive Shaft 1
5 3045229 Accessory   Drive Shaft 1
7 3014103 Plain   Washer 1
13 206664 Gear   Spacer 1
8 3026556 Thrust   Bearing 1
9 3026557 Thrust   Bearing 1
10 3045136 Plain   Washer 1
6 3014103 Plain   Washer 1
11 AR11496 Support   And Bushing 1
7 3026557 Thrust   Bearing 1
12    116391 Bushing 1
12 3045136 Plain   Washer 1
9 AR11496 Support   And Bushing 1
13    3002158 Pipe   Plug 1

206638 Fuel   Pump Support
14 205598 Access   Drive Support Gasket 1
10    116391 Bushing 1

206032 Twelve   Point Cap Screw 1
11    S   963 E Plug 1

205644
1
14 S   162 A Hexagon   Head Cap Screw 4

205643 Twelve   Point Cap Screw 4
16 103009 Hexagon   Head Cap Screw 1

135783 Lock   Washer 6
17 103023 Hexagon   Head Cap Screw 1
15 S   610 Lock   Washer 6
18 205598 Access   Drive Support Gasket 1
19 3028587 Accessory   Drive Pulley 1
20 190397 Wear   Sleeve 1
21 S   316 Plain   Woodruff Key 1
22 3200287 Keyway   Seal 1
