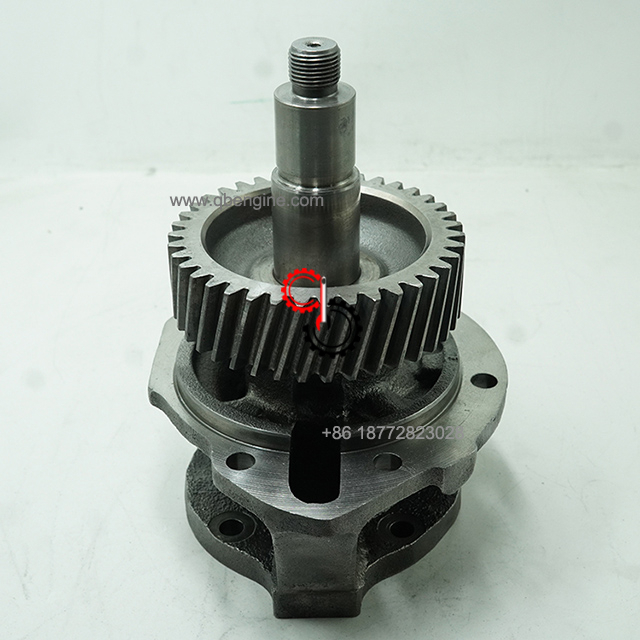

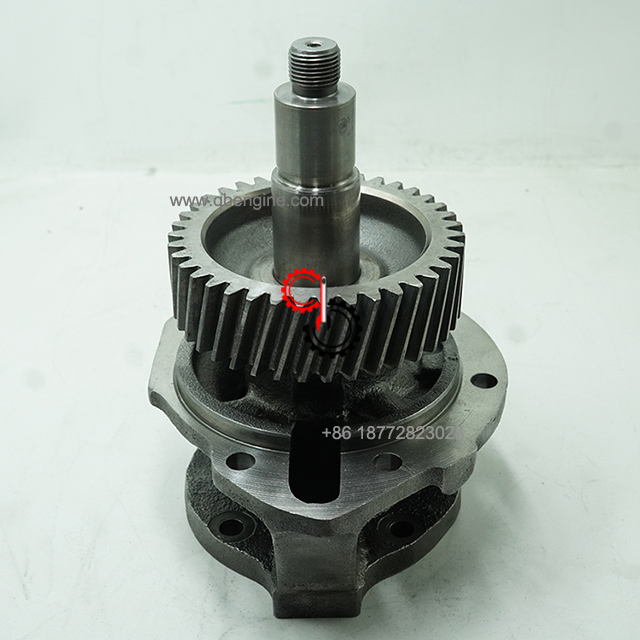

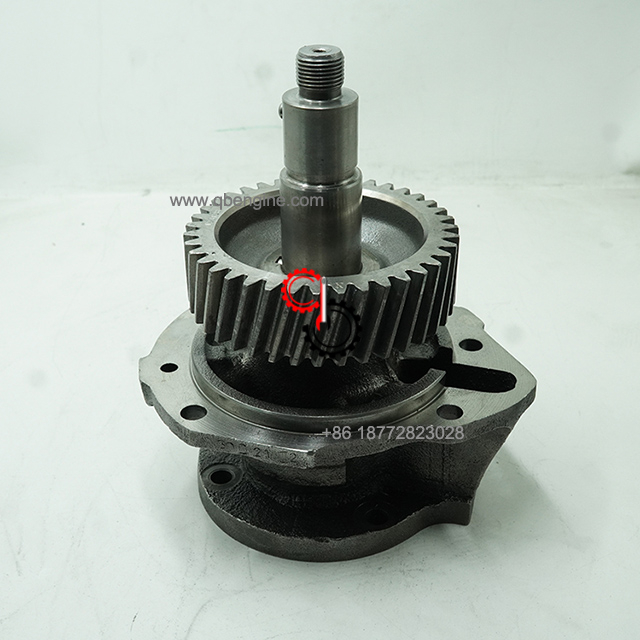

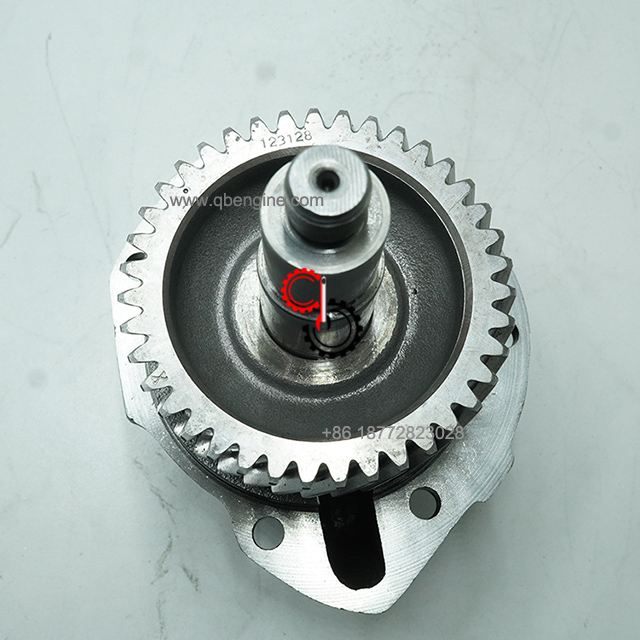

Original Cummins 3005132 3004072 V28 Accessory Drive

  • V28

  • Cummins

  • 3005132 3004072

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Supersessions Part Number 3005132 3004072 Cummins Accessory Drive details

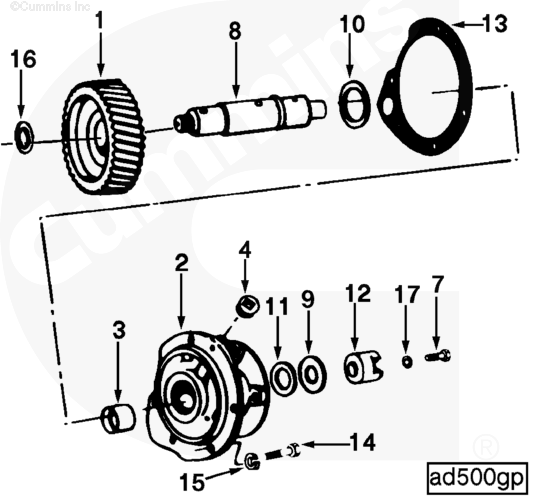

Electronic Parts Catalogue - Option Detail
Cummins Engines Cummins Engine Parts G28, V28

3005132

Cart Ref No Part Number Part Description Required Remarks

3005132 Accessory Drive 1 PHASE 3. LESS COMPRESSOR,

3005132 Accessory Drive 1

1 123128 Accessory Drive Gear 1

2 3003712 Housing And Bushing 1

3 116391 Bushing 1

4 S 911 B Pipe Plug 2 1/8 NPT

3005123 Accessory Drive 1 USE WITH 2 CYLINDER COUPLING
7 3000173 Hexagon Head Cap Screw 1 3/8 - 16 X 1 in
8 3000171 Accessory Drive Shaft 1


3034438 Groove Pin 1


BM71222 Fuel Pump Drive 1

9 3014103 Plain Washer 1 1 1/32 in
10 3026556 Thrust Bearing 1


AR 8540 Accessory Drive
PHASE 3, 2 AND 1. LESS
11 3026557 Thrust Bearing 1

17 170664 Plain Washer 1 3/8 in
12 3000175 Jaw Coupling Hub 1

13 200808 Accessory Drive Support Gasket 1

14 103009 Hexagon Head Cap Screw 5 7/16 - 14 X 1 1/4 in.

3005124 Accessory Drive 1 AND AIR COMPRESSOR. USED
15 S 610 Lock Washer 5 7/16 in.
16 3008947 Keyway Seal 1


BM32774
1 SAME AS BM-30006 EXCEPT L.H.

BM93568 Accessory Drive 1 SAME AS BM-30006 EXCEPT WITH

BM67578 Accessory Drive 1 SAME AS BM-93586 EXCEPT L.H.

BM48859
1 R.H. WITH COMPRESSOR, TO

BM48860 Accessory Drive 1 SAME AS BM-48859 EXCEPT USED

BM49929 Drive 1 SAME AS BM-48859 EXCEPT L.H.

BM49930 Accessory Drive 1 SAME AS BM-48859 EXCEPT L.H.

AR 8616 Accessory Drive 1 LESS GEAR, P.I.B. 2201.

AR 9155 Drive , Accessory And Transfer Pump
AND TRANSFER PUMP

AR 9156 Drive , Accessory And Transfer Pump
AND TRANSFER PUMP

3005251 Drive , Accessory Woodward Governor
WOODWARD GOVERNOR DRIVE.


SHIPMENT CHARACTERISTICS
Length * Width * Height 18cm*18cm*27cm
Weight 9.77kg


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
