Cummins / Products / 2886863 4969136 QSK19 Original Accessory Drive Cummins Excavator Parts

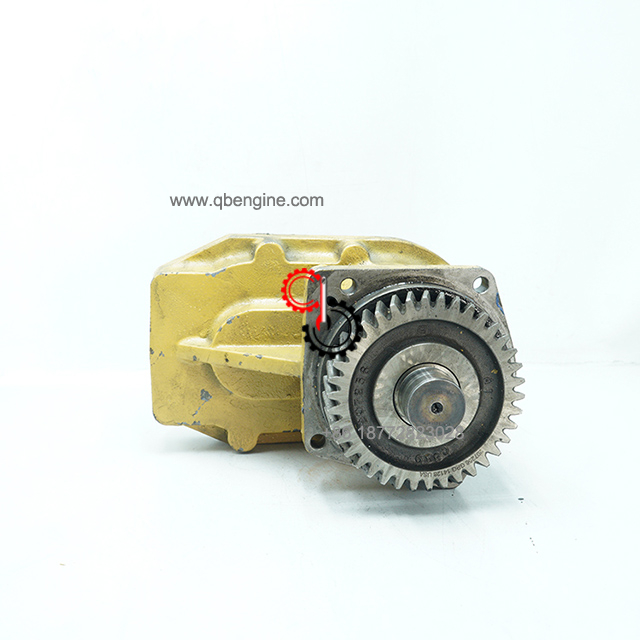

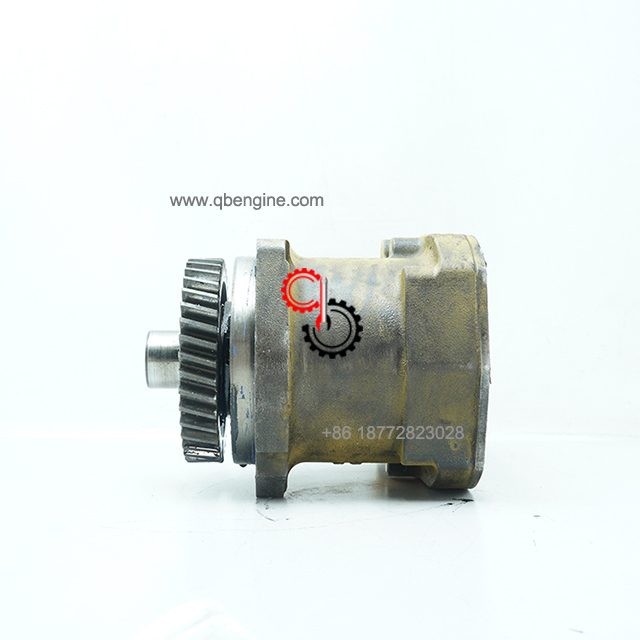

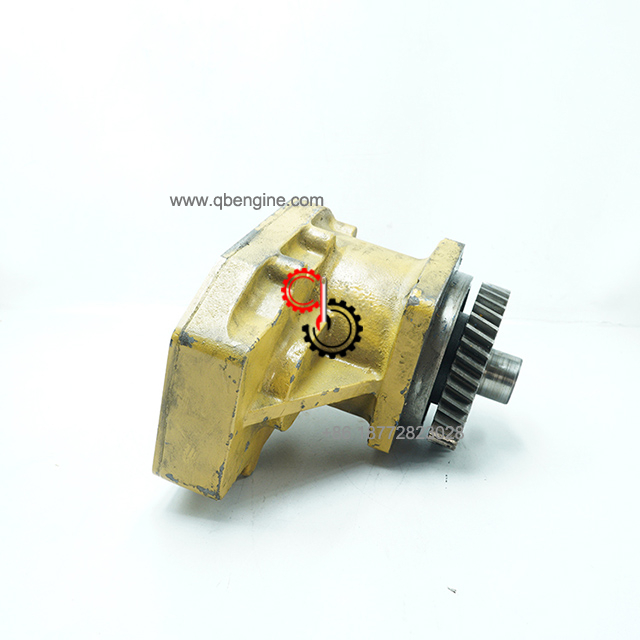

2886863 4969136 QSK19 Original Accessory Drive Cummins Excavator Parts

Name: 2886863 4969136 QSK19 Original Accessory Drive Cummins Excavator Parts
Brand: Cummins
SKU: 752359397
Rating: 5.0 (84 reviews)

Supersession Part Number:	2886863 4969136 4969137
weight(kg):	38
size(cm):	36cm36cm24cm
Availability:

Quantity:



Inquire Add to Basket PDF Export

Electronic Parts Catalog - Option Detail
Engines	K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, KTAA19 K131G, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM2350 K114, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

2886863

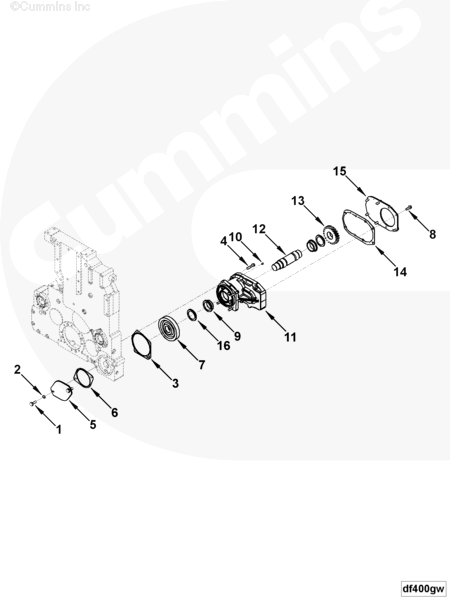

Cart	Ref No	Part Number	Part Description	Required	Remarks
		DF4717-01	Front Gear Train Accessory Drive		Fro Gear Train Acc Drive
1	S 145	Hexagon Head Cap Screw	2	1/2 - 13 X 1 1/4 in.
2	S 608	Lock Washer	2	1/2 in.
3	3007380	Hydraulic Pump Gasket	1
4	3044413	Captive Washer Cap Screw	4	3/8 - 16 x 2 in.
5	3914868	Cover Plate	1
6	3929751	Accessory Drive Cover Gasket	1
	2886863	Air Compressor Drive	1
7	4953346	Hydraulic Pump Gear	1
8	3040838	Captive Washer Cap Screw	6	3/8 - 16 x 1 1/4 in.
9	4969132	Bushing	2
10	3681054	Pin Dowel	2
11	4969136	Gear Housing	1
12	4969134	Accessory Drive Shaft	1
13	4951837	Accessory Drive Gear	1
14	4951839	Accessory Drive Cover Gasket	1
15	4951840	Accessory Drive Cover	1
16	188040	Thrust Bearing	2
