Cummins / Cummins Parts / Electronic Control Module (ECM), Sensor, Wiring Harness / 2886855 3013747 K19 QSK19 Hydraulic Pump Drive Original Cummins Marine Engine Parts

2886855 3013747 K19 QSK19 Hydraulic Pump Drive Original Cummins Marine Engine Parts

2886855 3013747 K19 QSK19 Hydraulic Pump Drive Original Cummins Marine Engine Parts

Name: 2886855 3013747 K19 QSK19 Hydraulic Pump Drive Original Cummins Marine Engine Parts
Brand: Cummins
Rating: 5.0 (74 reviews)

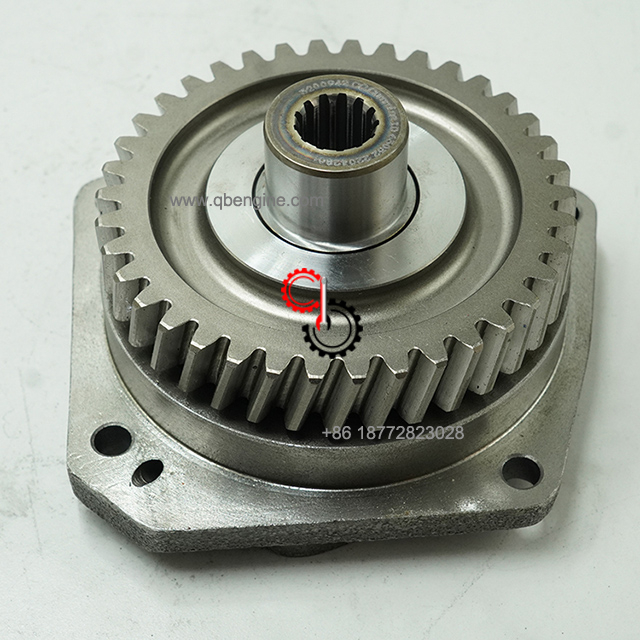

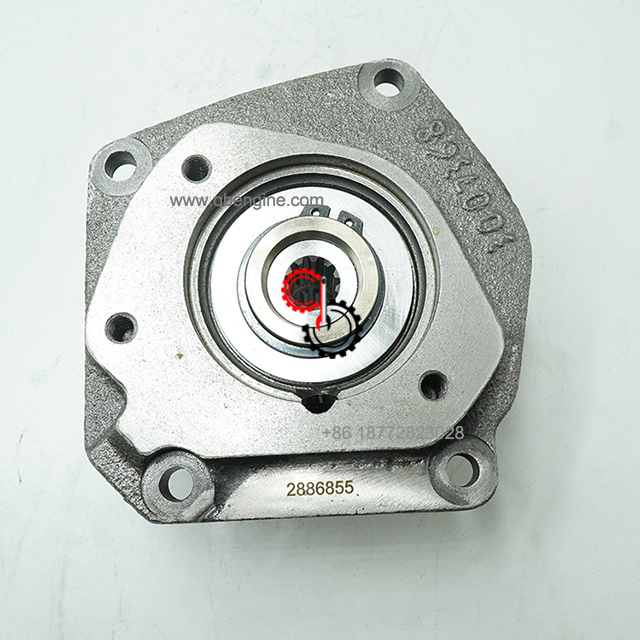

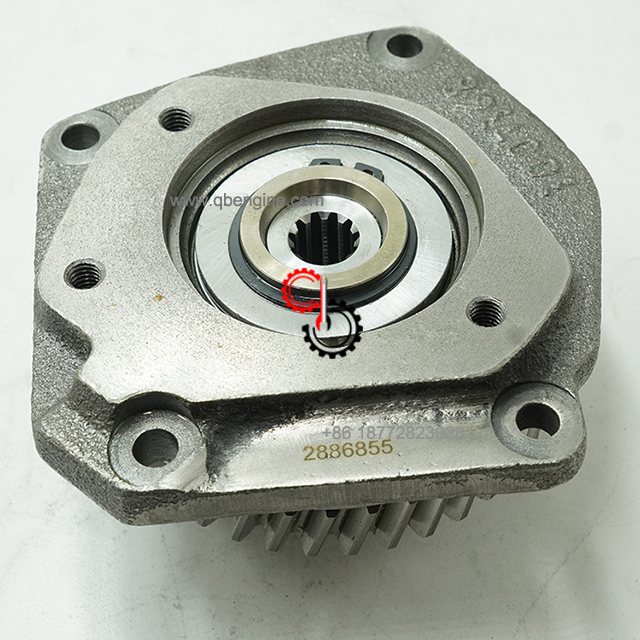

Original Cummins 2886855 3013747 K19 QSK19 Hydraulic Pump Drive

Model:
K19 QSK19
Brand:
Cummins
Code:
2886855 3013747
Delivery Period:
1-7 days
Package:
Genuine Original package or Ne
Warranty:
6 Months

Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

Supersessions Part Number 2886855 3013747 Cummins Hydraulic Pump Drive details

Electronic Parts Catalogue - Option Detail
Cummins Engines	Cummins Engine Parts K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, KTAA19 K131G, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

2886855

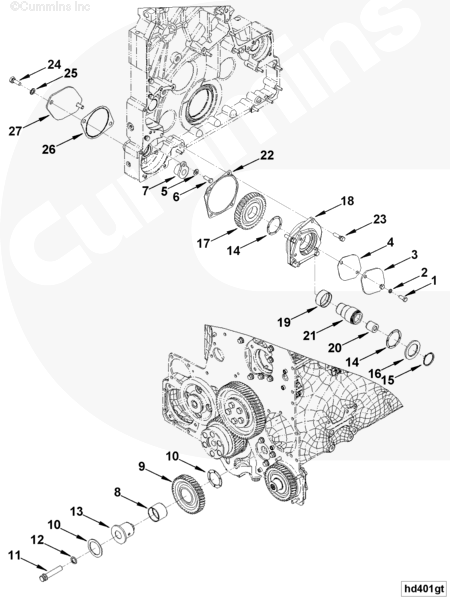

Cart	Ref No	Part Number	Part Description	Required	Remarks
		HD4119	Auxiliary Pump Drive		Auxiliary Pump Drive
		MP 5031	Hydraulic Pump Drive Cover	1	Purchase Lower Level Parts
1	S 109	Hexagon Head Cap Screw	2	3/8 - 16 x 7/8 in.
2	S 606 A	Lock Washer	2	3/8 in.
3	204048	Cover Plate	1
4	3004242	Hydraulic Pump Gasket	1	Replace With 3558515
	MP45143	Pump Drive Insert	1	Purchase Lower Level Parts
5	S 602	Plain Washer	1	3/8 in.
6	129510	Hexagon Head Cap Screw	1	3/8 - 16 X 1 Inch.
7	3003123	Pump Drive Insert	1
	3004739	Gear , Bushing Ps Idler	1	Replace With 4953325
8	3004686	Bushing	1
9	3004738	Idler Gear	1
	3007803	Mounting Idler Gear	1	Purchase Lower Level Parts
10	130083	Thrust Bearing	2
11	207527	Twelve Point Cap Screw	1	5/8 - 18 X 3 Inch.
12	3200772	Plain Washer	1	5/8 Inch.
13	3202114	Idler Shaft	1
	3013747	Hydraulic Pump Drive	1	Replace With 2886855
14	188040	Thrust Bearing	2
15	205781	Retaining Ring	1
16	205784	Plain Washer	1
17	207256	Hydraulic Pump Gear	1
	3007391	Hydraulic Pump Support	1
18	3007368	Hydraulic Pump Support	1
19	3014993	Bushing	1
	3200942	Hydraulic Pump Drive Shaft	1
20	205711	Spline Coupling Sleeve	1	Purchase 3200942
21	205769	Hydraulic Pump Drive Shaft	1
	3016724	Cover Hydraulic Pump Mounting	1	Purchase Lower Level Parts
22	3007380	Hydraulic Pump Gasket	1
23	3012472	Captive Washer Cap Screw	4	3/8 - 16 X 1 1/2 in.
	3200785	Cover Mounting Plate	1	Purchase Lower Level Parts
24	S 145	Hexagon Head Cap Screw	2	1/2 - 13 X 1 1/4 in.
25	S 608	Lock Washer	2	1/2 in.
26	3929751	Accessory Drive Cover Gasket	1
27	3914868	Cover Plate	1

SHIPMENT CHARACTERISTICS
Length * Width * Height	21.93cm20.96cm14.61cm
Weight	5.602kg
