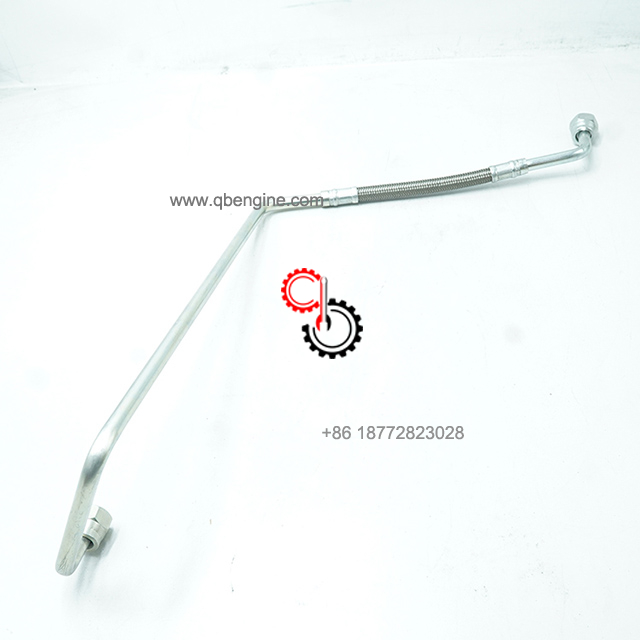

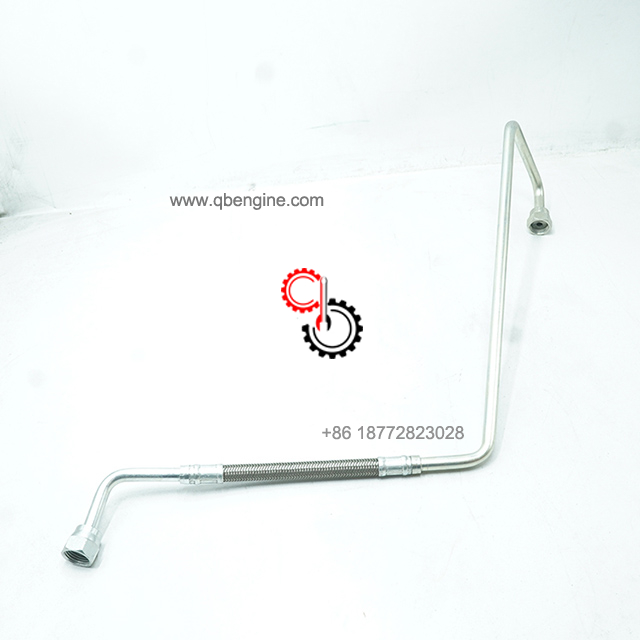

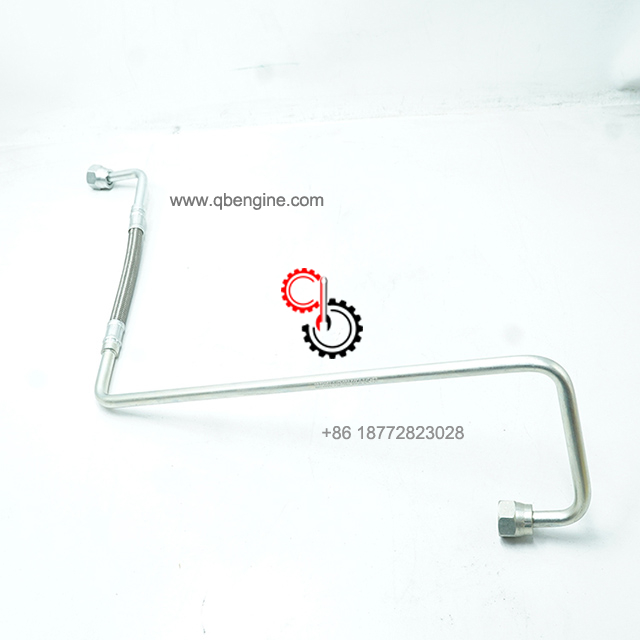

Genuine Cummins 2873983 ISZ QSZ Flexible Hose
TP2872 Turbocharger Plumbing
Turbocharger Plumbing
Application: Pwr Gen
Engine Family: D0C
Engine Cylinders: 6
Turbo Exhaust Outlet Location: Front Out
From Eng C/L (MM): -454.094
From Crank C/L (MM): 538.881
From FFOB (MM): -404.140
Supply Line Routing: TBD
Drain Line Location:
From Eng C/L (MM): -461.218
From Crank C/L (MM): 481.392
From FFOB (MM): -582.105
Wastegate Spigot Location: Low
From Eng C/L (MM): -589.656
From Crank C/L (MM): 465.522
From FFOB (MM): -608.475
Drain Line Type: Flexible
Bearing Housing Cooling
Provision: Oil

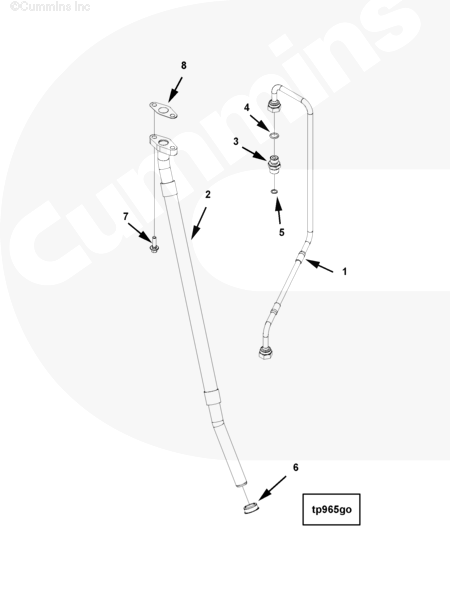

Cart
Ref No
Part Number
Part Description
Required
Remarks
TP2872
Turbocharger Plumbing
1
2873983
Flexible Hose
1
2
2873984
Turbocharger Oil Drain Connection
1
3090400
Male Union
1
3
3090419
Male Union
1
4
3679139
O-Ring Seal
1
5
3922794
O-Ring Seal
1
6
3678762
Grommet Seal
1
7
3900631
Hexagon Flange Head Cap Screw
2
M8 X 1.25 X 25.
8
4960136
Flange Gasket
1
SHIPMENT CHARACTERISTICS
Length * Width * Height
67cm*2cm*2cm
Weight
0.27kg
