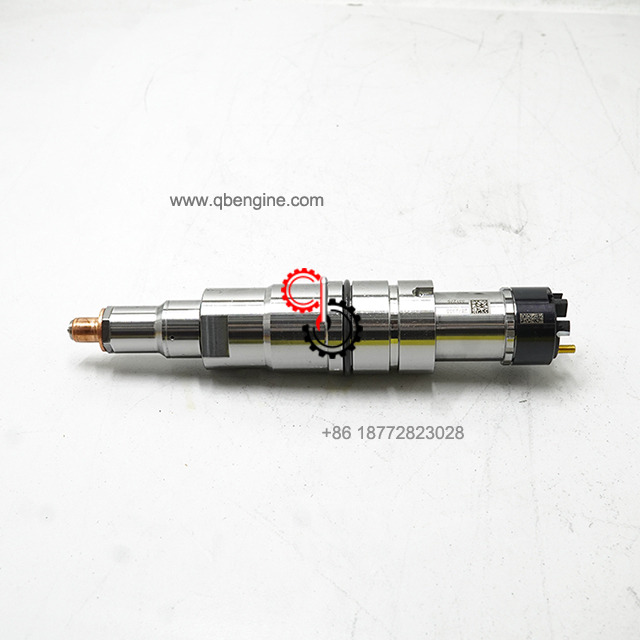

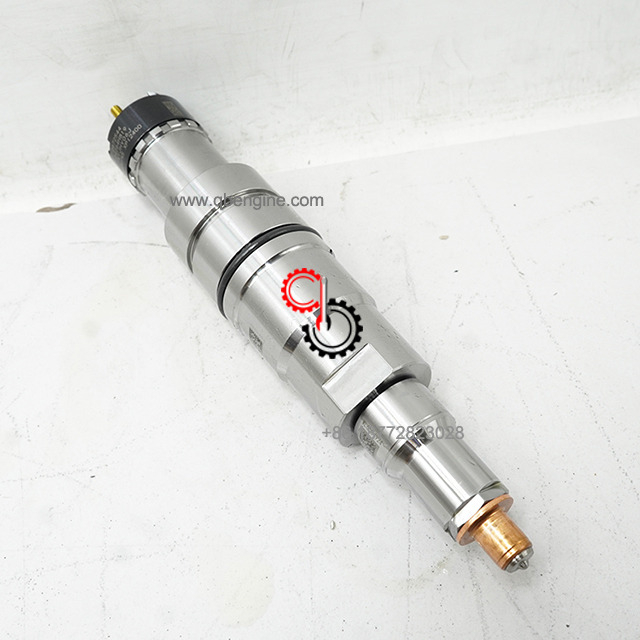

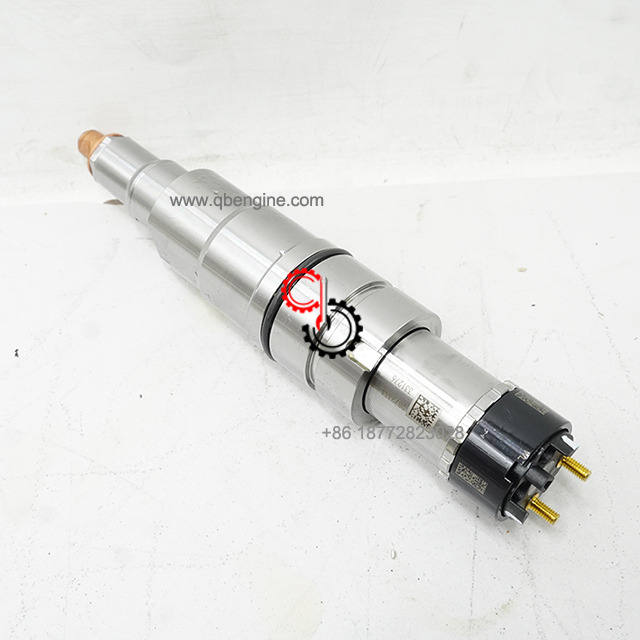

Cummins ISZ QSZ13 Fuel Injector 2872544

  • ISZ QSZ13

  • Cummins

  • 2872544

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins ISZ QSZ13 Injector 2872544 In Stock


Electronic  Parts Catalog - Option Detail
Cummins  Engines Cummins Engine Parts

2872544

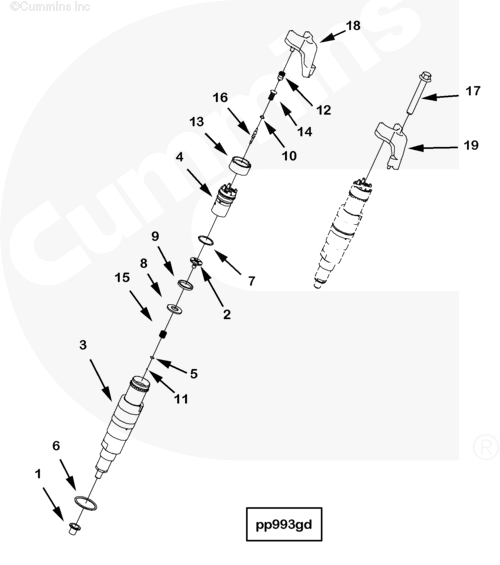

Cart Ref No Part Number Part Description Required Remarks


PP43787-01 Injector


2872544 Injector 6 Sold as 2872544PX
1 2872767 Injector Seal 1

2 2872252 Armature 1

3 2872290 Injector Nozzle 1

4 2872866 Solenoid Stator 1

5 2872318 Check Valve Retainer 1

6 3347939 O-Ring Seal 1

7 4928163 O-Ring Seal 1

8 4928277 Disc Spring 1

9 4928472 Shim 1

10 4954408 Spring Retainer 1

11 4954410 Check Ball 1

12 4954451 Preload Adjusting Screw 1

13 4954476 Control Valve Retainer 1

14 4954709 Compression Spring 1

15 4954985 Compression Spring 1

16 4984663 Armature Plunger 1

17 2830730 Hexagon Flange Head Cap Screw 6 M10 X 1.50 X 70.
18 4974970 Injector Clamp 3

19 4974971 Injector Clamp 3


SHIPMENT CHARACTERISTICS
Length * Width * Height 15cm*5cm*5cm
Weight 1KG


Additional parts are also available. Check with Qingbang Online Service.


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
