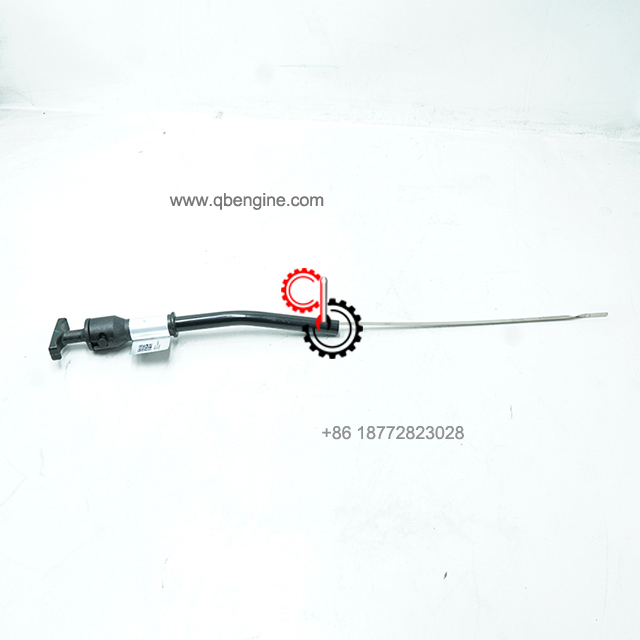

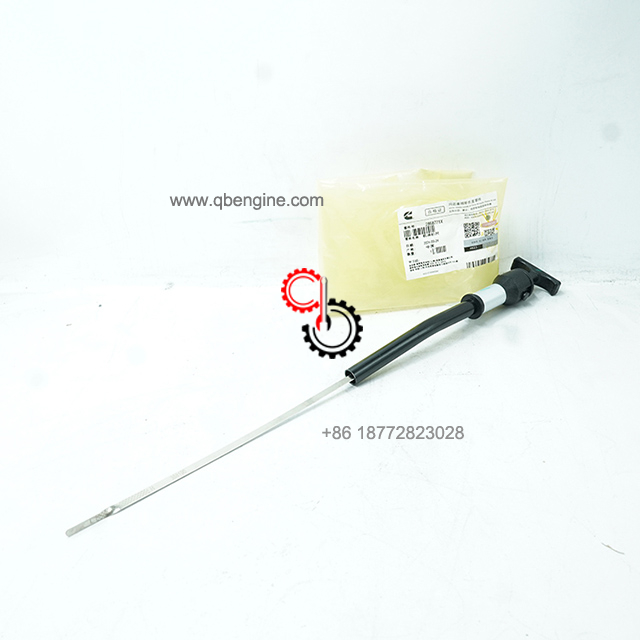

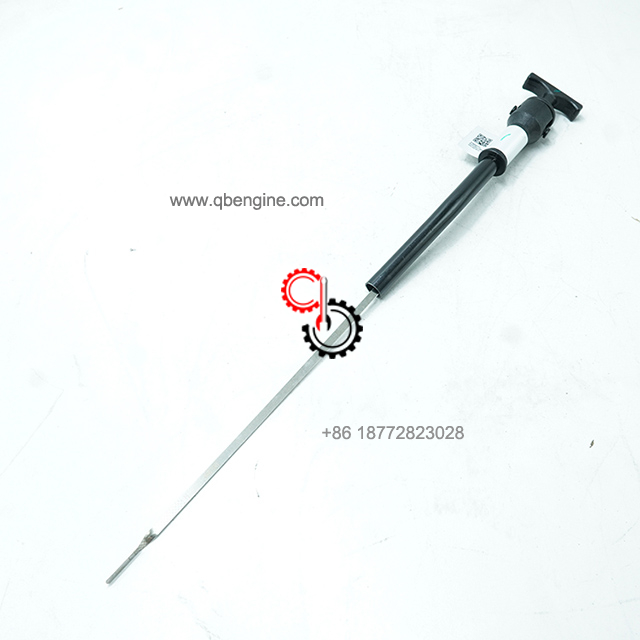

Supersessions Part Number 2868771 3104872 Cummins Dipstick details
Electronic Parts Catalogue - Option Detail
Cummins Engines
Cummins Engine Parts ISM CM570, ISM CM570/870, ISM CM875, ISM CM876, ISM CM876 E, ISM11 CM876 M103, ISM11 CM876 SN, M11 CELECT, M11 CELECT PLUS, M11 MECHANICAL, QSM11 CM570, QSM11 CM876
LG2136 Oil Level Gauge
Oil Level Gauge
Dipstick Supplier: Cummins
Oil Gauge Tube Type: Solid
Dipstick Location: Right Side Rear Hand Hole Cover
Gauge Tube Pos Horiz from Engine Centerline: 394.9mm (15.5 in.)
Oil Pan Material: Stamped Steel
Sump Location: Rear
High Oil Pan Capacity: 34.065 L (9.0 Gallons)
Low Oil Pan Capacity: 26.495 L (7.0 Gallons)
Dipstick Guide Tube Horiz Distance: 109.1
Dipstick Type: External Locking Style
Cart
Ref No
Part Number
Part Description
Required
Remarks
LG2136
Oil Level Gauge
1
163759
Tube Connector
1
2
2868771
Dipstick
1
SHIPMENT CHARACTERISTICS
Length * Width * Height
46cm*4.5cm*3cm
Weight
0.102kg
Small Tips for Quick Service:
If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.
For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
