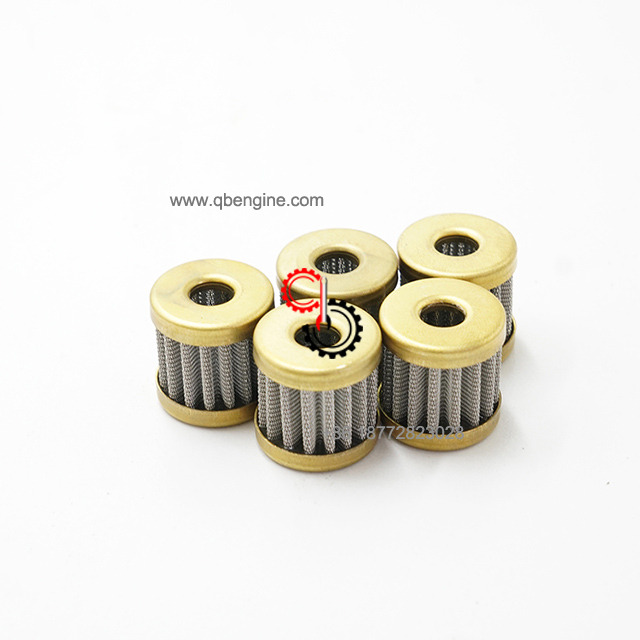

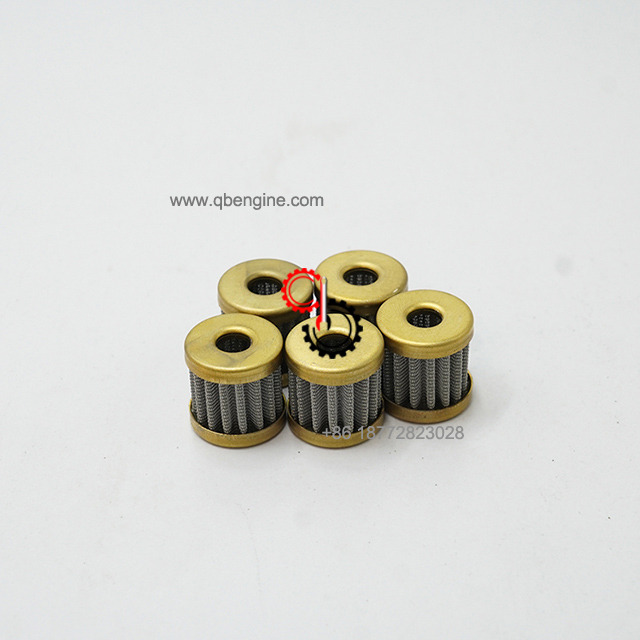

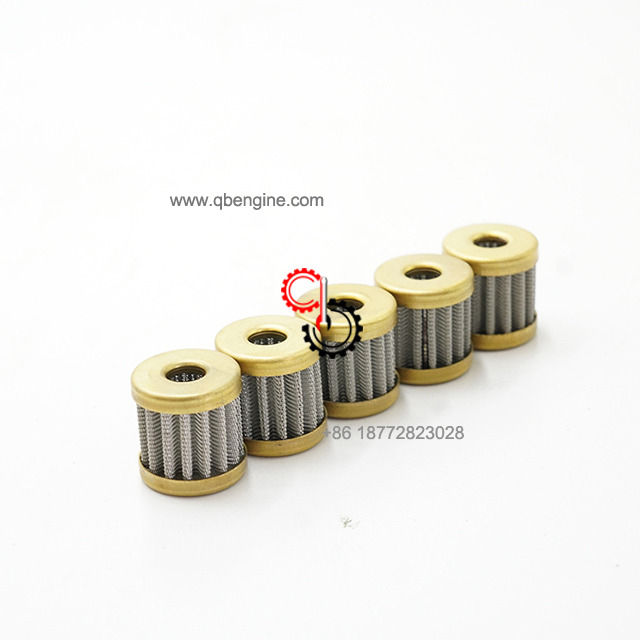

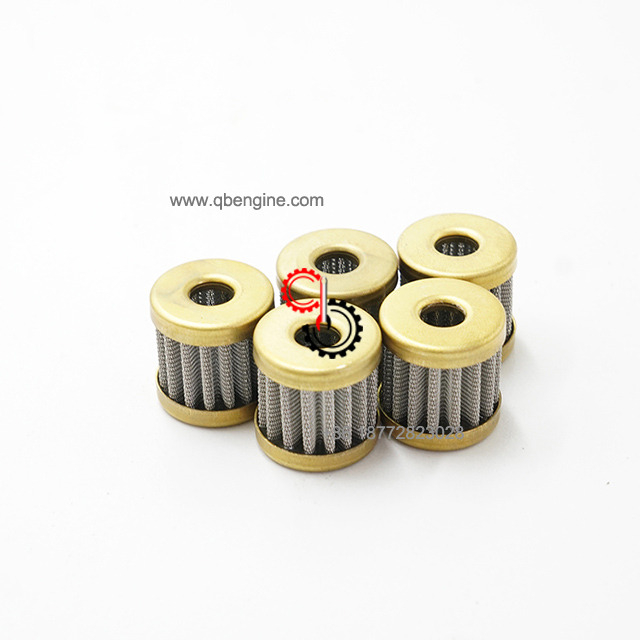

Cummins Original Filter Screen 146483

  • Original

  • Cummins

  • 146483

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export


Cummins Original Filter Screen 146483 In Stock


Electronic  Parts Catalog - Option Detail
Cummins  Engines Cummins Engine Parts  K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19  CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850  MCRS, QSK19G

146483

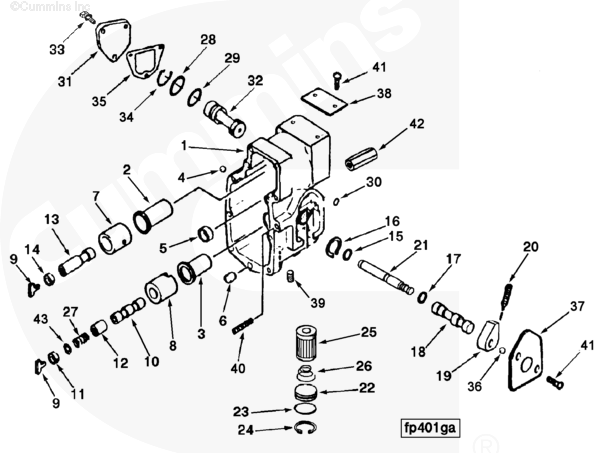

Cart Ref No Part Number Part Description Required Remarks

3038668-01
1

1 3025695 Fuel Pump Body 1

2 108384 Spring Pack Sleeve 1

3 202682 Spring Pack Housing 1

4 214139 Ball Plug 3

5 100193 Tachometer Drive Bushing 1

6 118227 Ring Dowel 2

7 212147 Governor Barrel 1

8 218548 Governor Barrel 1


3040760 Governor Plunger 1

9 70690 Governor Plunger Driver 1

10 3040750 Governor Plunger 1

11 3027633 Thrust Bearing 1

12 3048557 Bearing Spacer 1


AR40230 Governor Plunger Drive 1

9 70690 Governor Plunger Driver 1

13 212350 Governor Plunger 1

14 3035230 Thrust Bearing 1

15 100478 O-Ring Seal 1

16 163945 Retaining Ring 1

17 213768 O-Ring Seal 1

18 3006175 Fuel Pump Adjusting Screw 1


3006430 Throttle Shaft 1

19 3006343 Throttle Lever Stop 1

20 3006344 Socket Set Screw 2

21 3046680 Throttle Shaft 1

22 201007 Fuel Pump Filter Cap 1

23 145504 O-Ring Seal 1

24 128807 Retaining Ring 1

25 146483 Filter Screen 1

26 70700 Compression Spring 1

27 3035823 Compression Spring 1

28 145505 O-Ring Seal 1

29 70775 O-Ring Seal 1

30 68061 A O-Ring Seal 1

31 3004904 Cover Plate 1

32 3000438 Retainer Plug 1

33 70772 A Fillister Head Cap Screw 3

34 S 16240 Retaining Ring 2

35 3028064 Cover Plate Gasket 1

36 213769 Ball Plug 1

37 3000446 Fuel Control Cover 1

38 105375 Nameplate 1

39 3025460 Pipe Plug 3 1/8 NPT
40 3046407 Socket Set Screw 1

41 S 2286 Drive Screw 4 3/16 in.
42 110058 Fuel Pump Adjusting Nut 1 1/4 - 28 UNF.
43 101841 Shim A/R .005 in.


SHIPMENT CHARACTERISTICS
Length * Width * Height 2cm*2cm*2cm
Weight 0.01kg
