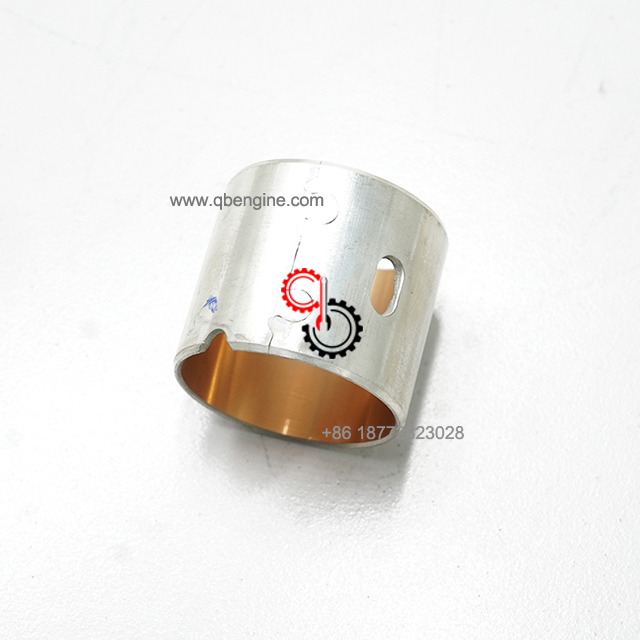

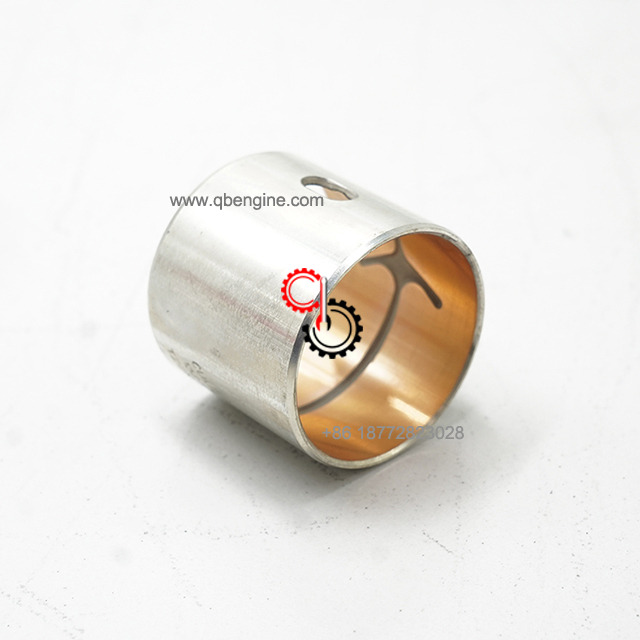

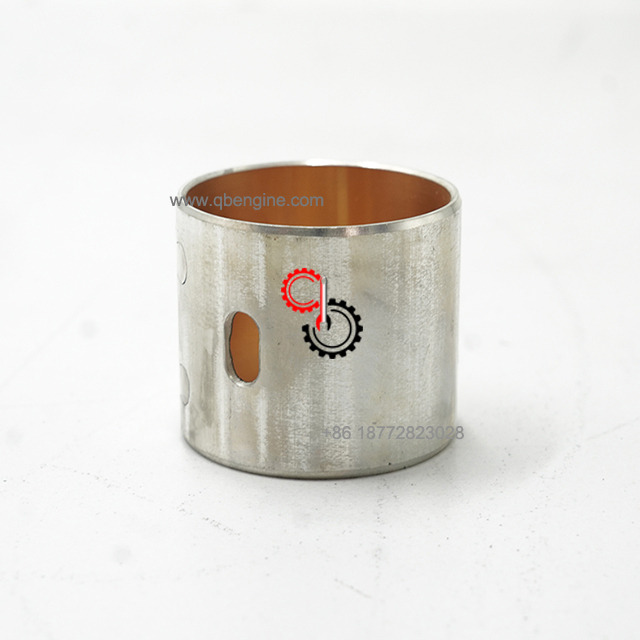

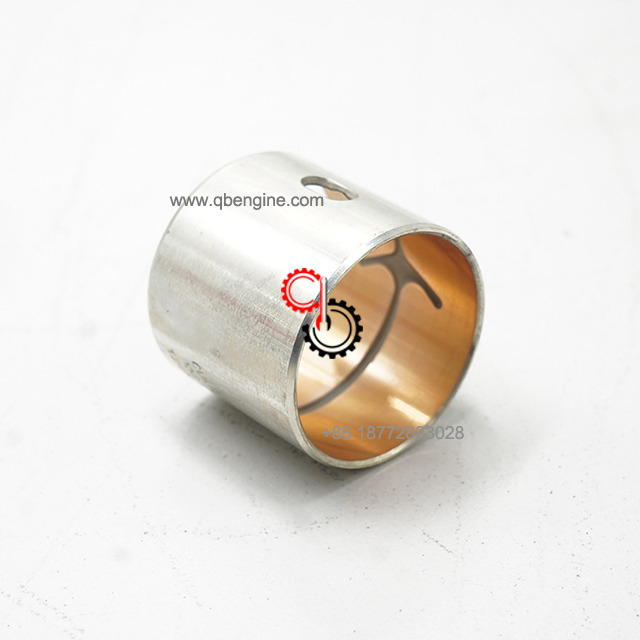

High Performance Cummins Bushing 132770

  • Original

  • Cummins

  • 132770

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

High Performance Cummins Bushing 132770 In Stock

Electronic   Parts Catalog - Option Detail
Cummins   Engines Cummins Engine Parts   G855, G855 CM558, GTA855 CM558 (CM2358) G101, N14   CELECT, N14 CELECT PLUS, N14 MECHANICAL, NH/NT 855, QSM11   CM876 M101, QSM11 CM876 M102M, QSN14 CM876 N103, QSN14 CM876   N105, QSNT14 CM876 N102

132770

Cart Ref No Part Number Part Description Required Remarks

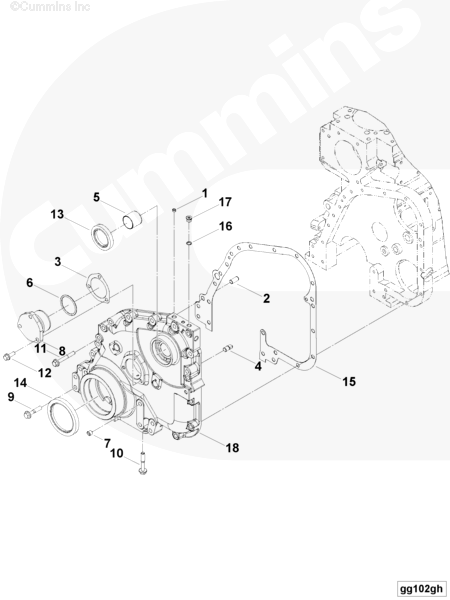

GG1752-01 Front Gear Cover
Front Gear Cover...(More)
1 S 911 B Pipe Plug 1 1/8 NPT.
2 60408 Pin Dowel 1

3 65259 C Shim 1

4 70653 Diamond Dowel 1

5 132770 Bushing 1

6 215705 O-Ring Seal 1

7 3008466 Pipe Plug 1 1/4 NPT.
8 3008530 Camshaft Thrust Support 1

9 3011712 Captive Washer Cap Screw 9 7/16 - 20 X 2 3/16 in.
10 3011713 Captive Washer Cap Screw 1 7/16 - 20 X 2 5/8 in.
11 3011714 Captive Washer Cap Screw 3 7/16 - 20 X 3 in.
12 3011715 Captive Washer Cap Screw 3 3/8 - 16 X 1 3/16 in.
13 3020185 Oil Seal 1

14 3020186 Oil Seal 1

15 3021704 Gear Cover Gasket 1


3037536 Threaded Plug 1 9/16 - 18 UNF.
16 3037537 O-Ring Seal 1

17 3040813 Threaded Plug 1 9/16 - 18 UNF.

4914941 Gear Cover 1

5 132770 Bushing 1

18 4914937 Gear Cover 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 7cm*7cm*4.2cm
Weight 0.064kg


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
